Product Description
PS: Please kindly send us exact technical requirments so that we can recommend you the best solution. Thanks for your understanding!
General Description
Carbon brush slip ring also could be called electrical brush as a rotating contact component, which is widely used in many of electrical equipment applications. As per our experience in the slip ring field, carbon brush design is still receiving high welcome from customer in different industries, so Barlin Times spent much time to develop more and more latest design to satisfy with strict requirement of each customer in related field. Through our continuous test and inspection, carbon brush type slip ring launched into market successfully and get a good quality feedback from our customers.
Features:
1.Good commutative performance and longer life time.2.Reliable conduction and excellent lubricity.
3.Big size and current could be up to 600A or higher.
4.Maintenance free and low resistance.
5.Power and signal data combination.
Option:
1.Materials ( Including contact or housing materials ).2..Appearance & Shape ( As per your customization ).
3..Encoder and connector.
4.Lead wire length and size.
5.Circuits & current.
6.Installation method.
7.Flange and through hole.
Application:
1.Heavy machinery.
2.Packing equipment.
3.Wind turbine generator.
4.Manufacturing and control machine.
5.Test instrument.
6.Military equipment.
Specification:
| Circuits | 9 |
| Work Speed | 0-50RPM |
| Work Temperature | -20ºC~+60ºC |
| Connecting Method | Binding Post |
| Voltage Rating | 380VAC/DC |
| Current Rating | 15A |
| Dielectric Noise | Max 70mΩ@6VDC, 50mA(50rpm) |
| Insulation Resistance | 500MΩ@500VDC |
| Contact Materials | Cooper Graphite |
| Lead Wire Size | M3 |
| Through Hole Size | 25mm |
| Protection | IP00 or higher |

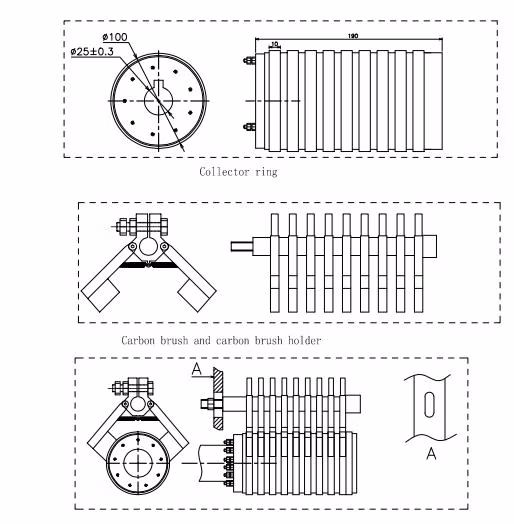

Drawing:
Highly apprecaited for your support and interest. Welcome your consulting and contacting!
