Basic Info.
Model NO.
T4L
Packing
Wooden Case
Resistance
Max. 5.5μΩ .M
Transverse Strength
Min. 13MPa
Grade
UHP
Forming Way
Extruded Graphite
Crystal Morphology
Compact Crystalline Graphite
Type

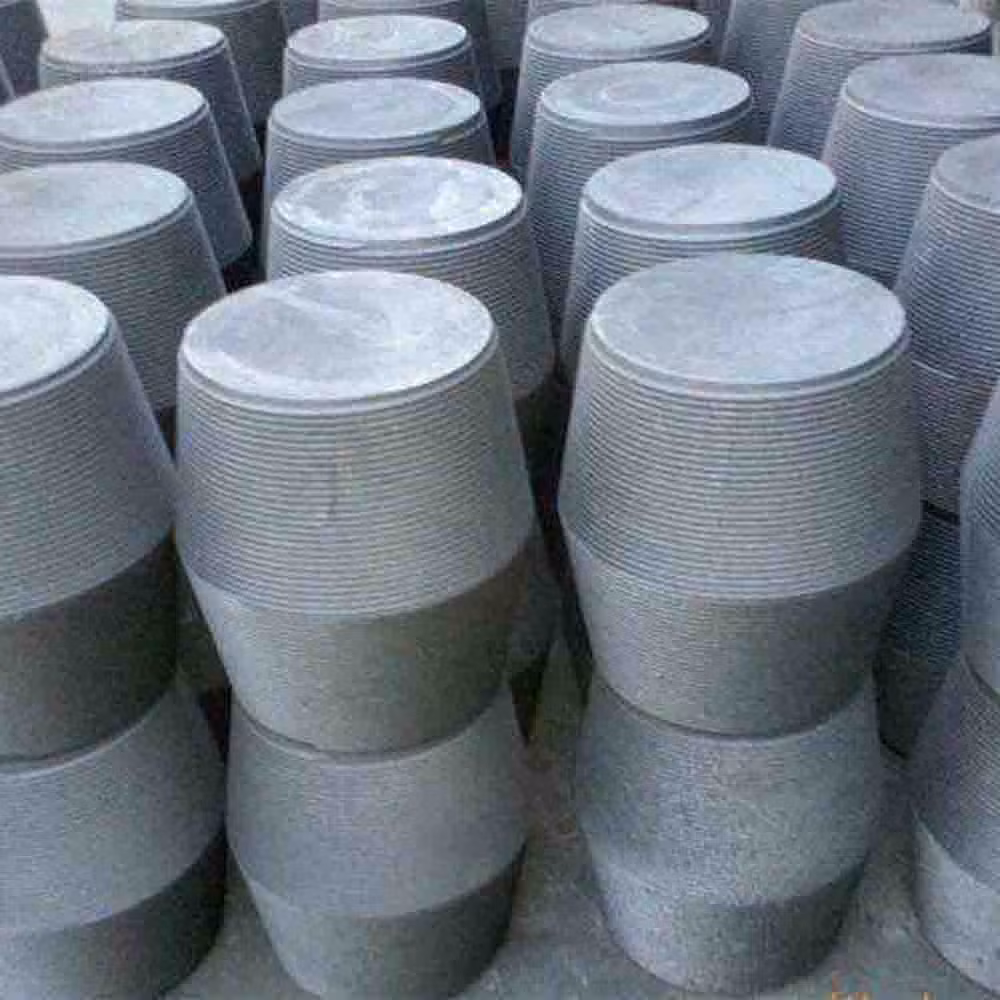

Granphite Electrode Nipple
Composition
Graphite
Transport Package
Wooden Case
Trademark
SINCERCARBON
Origin
China
HS Code
85451100
Production Capacity
50000t/Y
Product Description
 | |||||||||
| Dimensions for Graphite electrode conical nipples | |||||||||
| Dimensions for Graphite electrode | Conical nipples (mm) | Socket plug (mm) | Screw pitch (mm) | ||||||
| D | d2 | L | I | d1 | H | ||||
| Deviation | ≤ | Deviation | |||||||
| Type | Metric system(mm) | British system | -0.3 | -0.30 0 | -1 | 7 | 0-0.3 | 0-7 | 8.47 |
| 3TPI | 225 | 9″ | 139.7 | 91.22 | 203.2 | 141.22 | 107.6 | ||
| 250 | 10″ | 155.57 | 104.2 | 220 | 157.09 | 116 | |||
| 300 | 12″ | 177.16 | 117.39 | 270.9 | 148.68 | 141.5 | |||
| 350 | 14″ | 215.9 | 150.48 | 304.8 | 217.42 | 158.4 | |||
| 400 | 16″ | 215.9 | 150.48 | 304.8 | 217.42 | 158.4 | |||
| 400 | 16″ | 241.3 | 170.23 | 338.7 | 242.82 | 175.3 | |||
| 450 | 18″ | 241.3 | 170.23 | 338.7 | 242.82 | 175.3 | |||
| 450 | 18″ | 273.05 | 199.17 | 355.6 | 274.57 | 183.8 | |||
| 500 | 20″ | 273.05 | 199.17 | 355.6 | 274.57 | 183.8 | |||
| 500 | 20″ | 298.45 | 221.73 | 372.6 | 299.97 | 192.2 | |||
| 550 | 22″ | 298.45 | 221.73 | 372.6 | 299.97 | 192.2 | |||
| 600 | 24″ | 336.55 | 245.73 | 457.3 | 338.07 | 234.6 | |||
| 3TPIL | 350 | 14″ | 215.9 | 144.85 | 338.7 | 217.42 | 175.3 | ||
| 400 | 16″ | 241.3 | 167.43 | 355.6 | 242.82 | 183.8 | |||
| 450 | 18″ | 273.05 | 182.23 | 457.3 | 274.57 | 234.6 | |||
| 4TPI | 200 | 8″ | 122.24 | 81.48 | 177.8 | 7 | 115.92 | 94.9 | 6.35 |
| 225 | 9″ | 139.7 | 98.94 | 177.8 | 133.38 | 94.9 | |||
| 250 | 10″ | 152.4 | 109.52 | 190.5 | 146.08 | 101.3 | |||
| 300 | 12″ | 177.8 | 130.69 | 215.9 | 171.48 | 114 | |||
| 350 | 14″ | 203.2 | 149.74 | 254 | 196.88 | 133 | |||
| 400 | 16″ | 222.25 | 160.32 | 304.8 | 215.93 | 158.4 | |||
| 450 | 18″ | 241.3 | 197.37 | 304.8 | 234.98 | 158.4 | |||
| 500 | 20″ | 269.88 | 199.49 | 355.6 | 263.56 | 183.8 | |||
| 550 | 22″ | 298.45 | 228.06 | 355.6 | 292.13 | 183.8 | |||
| 600 | 24″ | 317.5 | 247.11 | 355.6 | 311.18 | 183.8 | |||
| 650 | 26″ | 355.6 | 268.27 | 457.2 | 349.28 | 234.6 | |||
| 700 | 28″ | 374.65 | 287.32 | 457.2 | 368.33 | 234.6 | |||
| 4TPIL | 300 | 12″ | 177.8 | 124.34 | 254 | 171.48 | 133 | ||
| 350 | 14″ | 203.2 | 141.27 | 304.8 | 196.88 | 158.4 | |||
| 400 | 16″ | 222.25 | 151.86 | 355.6 | 215.93 | 183.8 | |||
| 450 | 18″ | 241.3 | 190.91 | 355.6 | 234.98 | 183.8 | |||
| 500 | 20″ | 269.88 | 182.55 | 457.2 | 263.56 | 234.6 | |||
| 550 | 22″ | 298.45 | 211.12 | 457.2 | 292.13 | 234.6 | |||
| 600 | 24″ | 317.5 | 230.17 | 457.2 | 311.18 | 234.6 | |||
| 650 | 26″ | 355.64 | 251.38 | 558.8 | 349.28 | 285.4 | |||
| 700 | 28″ | 374.65 | 370.39 | 588.8 | 368.33 | 285.4 | |||
